Facebook, Instagram and WhatsApp just had a really bad Monday

It’s the end of the work day here on the east coast and I see that the Facebook is still unavailable. Facebook acknowledged the problem in the following two Tweets.

I can pinpoint the time that Facebook went offline for me. I was trying to post a comment on a post and my comment was not posting. I was a little annoyed, and almost thought the poster had blocked me, or was deleting my comment. This was at 11:45 am EDT. 5+ hours Facebook for me is still down.

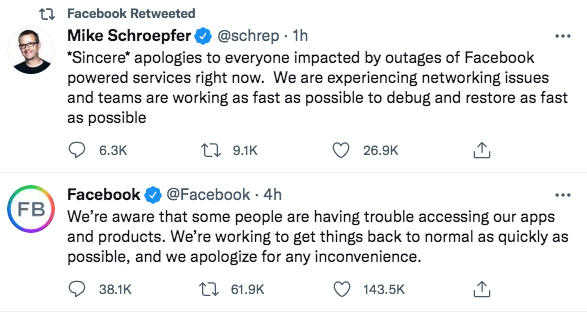

While we don’t know the exact cause of the downtime, and whether it was user error, some nefarious assault, or just an unexpected calamity of errors, we can learn a few things about this outage at this point.

Downtime is expensive

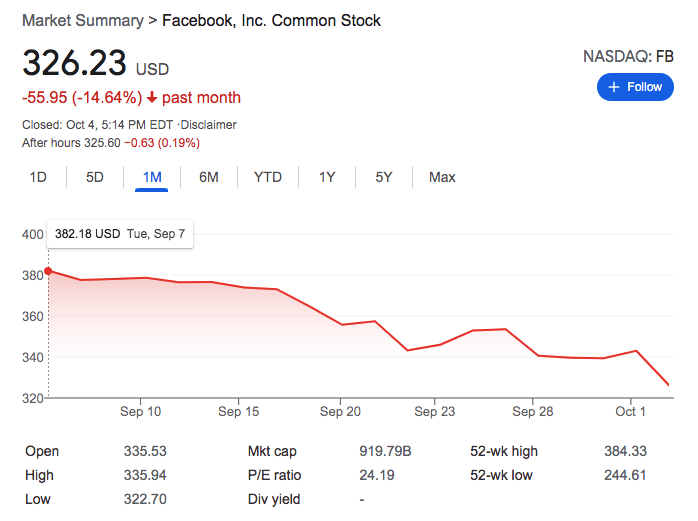

While we may never know the exact cost of the downtime experienced today, there are a few costs that can already measured. As of this writing, Facebook stock went down 4.89% today. That’s on top of an already brutal September for Facebook and other tech stocks.

The correction may have been inevitable, but the outage today certainly didn’t help matters.

But what was the real cost to the company? With many brands leveraging social media as an important part of their marketing outreach, how will this outage impact future advertising spends? Minimally I anticipate advertisers to investigate other social media platforms if they have not done so already. Only time will tell, but even before this outage we have seen more competition for marketing spend from other platforms such as TickTock.

Plan for the worst-case scenario

Things happen, we know that and plan for that. Business Continuity Plans (BCP) should be written to address any possible disaster. Again, we don’t know the exact cause of this particular disaster, but I would have to imaging that an RTO of 5+ hours is not written into any BCP that sits on the shelf at Facebook, Instagram or WhatsApp.

What’s in your your BCP? Have you imagined any possible disaster? Have your measured the impact of downtime and defined adequate recovery time objective (RTO) and recovery point objective (RPO) for each component of your business? I would venture to say that it’s impossible to plan for every possible thing that can go wrong. However, I would advise everyone to revisit your BCP on a regular basis and update it to include disasters that maybe weren’t on the radar the last time you reviewed your BCP. Did you have global pandemic in your BCP? If not, you may have been left scrambling to accomodate a “work from home” workforce. The point is, plan for the worst and hope for the best.

Communications in a disaster

Communications in the event of a disaster should be its own chapter in your BCP.

One Facebook employee told Reuters that all internal tools were down. Facebook’s response was made much more difficult because employees lost access to some of their own tools in the shutdown, people tracking the matter said.

Multiple employees said they had not been told what had gone wrong.

https://www.reuters.com/technology/facebook-instagram-down-thousands-users-downdetectorcom-2021-10-04/

A truly robust BCP must include multiple fallback means of communication. This becomes much more important as your business spreads out across multiple building, regions or countries. Just think about how your team communicates today. Phone, text, email, Slack might be your top four. But what if they are all unavailable, how would you reach your team? If you don’t know you may want to start investigating other options. You may not need a shortwave radio and a flock of carrier pigeons, but I’m sure there is a government agency that keeps both of those on hand for a “break glass in case of emergency” situation.

Summary

You have a responsibility to yourself, your customers and your investors to make sure you take every precaution concerning the availability of your business. Make sure you invest adequate resources in creating your BCP and that the teams responsible for business continuity have the tools they need to ensure they can do their part in meeting the RTO and RPO defined in your BCP.

Facebook, Instagram and WhatsApp just had a really bad Monday

AWS BYOC – Bring your own SQL Server cluster with AWS EC2 and SIOS

Nice blog post from SQL Server expert Steve Rezhener.

DataSteve


Introduction

They are multiple options to implement HADR solution for SQL Server in AWS public cloud. The easiest way to do that is to use AWS Database as a Service (DBaaS) product known as AWS RDS and enable Multi-AZ option using your AWS Control Panel (Fig #1).

See the source image
Fig #1

That is all it takes to roll out or add it to an existing instance. AWS will take care of the rest under the hood (depending on your SQL Server version, it might use Mirroring or Always On Availability Groups). It will provision all the necessary things for an automatic failover (witness, network, storage, etc…), so when a primary node will go down, it will be replaced with a secondary node. No ifs and no buts. This blog post is going to discuss how to build your own HADR solution using multiple AWS EC2s (BYOC) instead of a managed AWS…

View original post 1,104 more words

AWS BYOC – Bring your own SQL Server cluster with AWS EC2 and SIOS

Clustering SAP #ASCS and #ERS on #AWS using Windows Server Failover Clustering

When ensuring high availability for SAP ASCS and ERS running on WIndows Server, the primary cluster solution you will want to use is Windows Server Failover Clustering. However, when doing this in AWS you will quickly discover that there are a few obstacles you need to know how to overcome when deploying this in AWS.

I recently wrote this Step-by-Step guide that was published on the SAP blog that walks you through the entire process. If you have any questions, please leave a comment.

Clustering SAP #ASCS and #ERS on #AWS using Windows Server Failover Clustering

Changing a Drive Letter with PowerShell

Here is a short but sweet post on how to change the drive letter of a partition. Despite using my best Google skills I couldn’t find an example that was doing it for me. I rolled up my sleeves and just figured it out on my own. I hope this helps someone out there.

Set-Partition -DiskNumber 4 -PartitionNumber 1 -NewDriveLetter X

As long as you know the DiskNumber and PartitionNumber this will immediately change the drive letter of the partition you specify.

You may also need to import the Storage module into Powershell before you can do this.

Import-Module -Name Storage

Let me know if this helped you

Changing a Drive Letter with PowerShell

Using Amazon FSx for SQL Server Failover Cluster Instances – What You Need to Know!

Intro

If you are considering deploying your own Microsoft SQL Server instances in AWS EC2 you have some decisions to make regarding the resiliency of the solution. Sure, AWS will offer you a 99.99% SLA on your Compute resources if you deploy two or more instances across different availability zones. But don’t be fooled, there are a lot of other factors you need to consider when calculating your true application availability. I recently blogged about how to calculate your application availability in the cloud. You probably should have a quick read of that article before you move on.

When it comes to ensuring your Microsoft SQL Server instance is highly available, it really comes down to two basic choices: Always On Availability Group (AG) or SQL Server Failover Cluster Instance (FCI). If you are reading this article I’m making an assumption you are well aware of both of these options and are seriously considering using a SQL Server FCI instead of a SQL Server Always On AG.

Benefits of a Microsoft SQL Server Failover Cluster Instance

The following list summarize what AWS says are the benefits of a SQL Server FCI:

FCI is generally preferable over AG for SQL Server high availability deployments when the following are priority concerns for your use case:

License cost efficiency: You need the Enterprise Edition license of SQL Server to run AGs, whereas you only need the Standard Edition license to run FCIs. This is typically 50–60% less expensive than the Enterprise Edition. Although you can run a Basic version of AGs on Standard Edition starting from SQL Server 2016, it carries the limitation of supporting only one database per AG. This can become a challenge when dealing with applications that require multiple databases like SharePoint.

Instance-level protection versus database-level protection: With FCI, the entire instance is protected – if the primary node becomes unavailable, the entire instance is moved to the standby node. This takes care of the SQL Server logins, SQL Server Agent jobs, certificates, etc. that are stored in the system databases, which are physically stored in shared storage. With AG, on the other hand, only the databases in the group are protected, and system databases cannot be added to an AG – only user databases are allowed. It is the database administrator’s responsibility to replicate changes to system objects on all AG replicas. This leaves the possibility of human error causing the database to become inaccessible to the application.

DTC feature support: If you’re using SQL Server 2012 or 2014, and your application uses Distributed Transaction Coordinator (DTC), you are not able to use an AG as it is not supported. Use FCI in this situation.

https://aws.amazon.com/blogs/storage/simplify-your-microsoft-sql-server-high-availability-deployments-using-amazon-fsx-for-windows-file-server/

Challenges with FCI in the Cloud

Of course, the challenge with building an FCI that spans availability zones is the lack of a shared storage device that is normally required when building a SQL Server FCI. Because the nodes of the cluster are distributed across multiple datacenters, a traditional SAN is not a viable option for shared storage. That leaves us with a two choices for cluster storage: 3rd party storage class resources like SIOS DataKeeper or the new Amazon FSx. Let’s take a look at what you need to know before you make your choice.

Service Level Agreement

As I wrote in how to calculate your application availability, your overall application SLA is only as good as your weakest link. In this case, the FSx SLA of 99.9%.

Normally 99.99% availability represents the starting point of what is considered “highly available”. This is what AWS promises you for your compute resources when two or more are deployed in different availability zones.

In case you didn’t know the difference between three nines and four nines…

  • 99.9% availability allows for 43.83 minutes of downtime per month
  • 99.99% availability allows for only 4.38 minutes of downtime per month

By hosting your cluster storage on FSx despite your 99.99% compute availability, your overall application availability will be 99.9%. In contrast, EBS volumes that span availability zones, such as in a DataKeeper deployment, qualifies for the 99.99% SLA at both the storage and compute layers, meaning your overall application availability is 99.99%.

Storage Location

When configuring FSx for high availability, you will want to enable multi-AZ support. By enabling multi-AZ you have an effectively have a “preferred” AZ and a “standby” AZ. When you deploy your SQL Server FCI nodes you will want to distribute those nodes across the same AZs.

Now in normal situations, you will want to make sure the active cluster node resides in the same AZ as the preferred FSx storage node. This is to minimize the distance and latency to your storage, but also to minimize the costs associated with data transfer across AZs. As specified in the FSx price guide, “Standard data transfer fees apply for inter-AZ or inter-region access to file systems.”

In the unfortunate circumstance where you have a SQL Server FCI failure, but not a FSx failure, there is no mechanism to tie both the storage and compute together. In the event that FSx fails over, it will automatically fail back to the primary availability zone. However, best practices dictate SQL FCI remain running on the secondary node until root cause analysis is performed and fail back is typically scheduled to occur during maintenance periods. This leaves you in a situation where your storage resides in a different AZ, which will incur additional costs. Currently the cost for transferring data across AZs, both ingress and egress, is $0.01/GB.

Without keeping a close eye on the state of your FSx and SQL Server FCI, you may not even be aware that they are running in different regions until you see the data transfer charge at the end of the month.

In contrast, in a configuration that use SIOS DataKeeper, the storage failover is part of the SQL Server FCI recovery, ensuring that the storage always fails over with the SQL Server instance. This ensures SQL Server is always reading and writing to the EBS volumes that are directly attached to the active node. Keep in mind, DataKeeper will incur a data transfer cost associated with write operations which are replicated between AZs or regions. This data transfer cost can be minimized with the use of compression available in DataKeeper.

Controlling Failover

In an FSx multi-subnet configuration there is a preferred availability zone and a standby availability. Should the FSx file server in the preferred availability zone experience a failure, the file server in the standby AZ will recover. AWS reports that this recovery time takes about 30 seconds with standard shares. With the use of continuously available file shares Microsoft reports this failover time can be closer to 15 seconds. During this failover time, there is a brownout that occurs where reads and writes are paused, but will continue once recovery completes.

FSx multi-site has automatic failback enabled, meaning that for every unplanned failover of FSx, you also have an unplanned failback. In contrast, typically when a SQL Server FCI experience an unplanned failover you would either just leave it running on the secondary or schedule a failback after hours or during the next maintenance period.

SQL Server Analysis Services Cluster Not Supported with FSx

If you want to cluster SSAS, you will need a clustered disk resource like SIOS DataKeeper. The How to Cluster SQL Server Analysis Server white paper clearly states that SMB cannot be used and that cluster drives with drive letters must be used. In contrast, the DataKeeper Volume resource presents itself as a clustered disk and can be used with SSAS.

Summary

While FSx certainly can make sense for typical SMB uses like Windows user files and other non-critical services where 99.9% availability SLA suffices, FSx is an excellent option If you application requires high availability (99.99%) or HA/DR solutions that also span regions, the SIOS DataKeeper is the right fit.

Using Amazon FSx for SQL Server Failover Cluster Instances – What You Need to Know!

Calculating Application Availability in the Cloud

When deploying business critical applications in the cloud you want to make sure they are highly available. The good news is that if you plan properly, you can achieve 99.99% (4-nines) of availability or more. However, calculating your true availability may not be as straightforward as it seems.

When considering availability you must consider the key components that make access to your application possible, which I’ll call the availability chain. Component of the availability chain are:

  • Compute
  • Network
  • Storage
  • Application
  • Dependent services

Your application is only as available as your weakest link, and your downtime increases exponentially with each additional link you add to the chain.  Let’s examine each of the links.

Compute Availability

Each of the three major cloud service providers have some similarities. One thing in common across all three platforms is the service level agreements (SLA) they will commit to for compute.

The SLA for all three public cloud providers for VMs when you have two or more VMs configured across different availability zones is 99.99%. Keep in mind, this SLA only guarantees the remote accessibility of one of the VMs at any given time, it makes no promises as to the availability of the services or application(s) running inside the VM. If you deploy a single VM within a single datacenter, this SLA varies from “90% of each hour” (AWS) to 99.5% (Azure and GCP) or 99.9% (Azure single VM when using Premium SSD).

True high availability starts at 99.99%, so the first step is to ensure your application is available is to make sure the application is distributed across two or more VMs that span availability zones. With two VMs spread across two availability zones, giving you 99.99% availability of at least one of those VMs, you could theorize that if you had three VMs spread across three availability zones your availability would be even greater than 99.99%. Although the cloud providers’ SLA will never guarantee beyond 99.99% availability regardless of the number of availability zones in use, if you use pure statistics you might come to the conclusion that your availability could jump to as high as 99.999999% or 8-nines of availability, 26.30 milliseconds downtime per month.

1-(.0001*.0001) = .99999999

99.999999% availability with three availability zones?

Don’t go around quoting that number, but just keep in mind that it makes sense that if two availability zones can give you 99.99% availability, it stands to reason that three availability zones is going to give you something significantly more than 99.99% availability.

Compute is just one link in the availability chain. We still have to address network, storage and other dependent services, which all represent possible points of failure.

Network Availability

In order for your application to be available, every network hop between the client and the application and all the resources that the application depends on, must be available and working within tolerable latency ranges. You need to understand the network links between database servers, application servers, web servers and clients to know precisely where the network might fail. And remember, the more links in your availability chain the lower your overall availability will be.

Although network availability betweens VMs in the same vNet are covered under the standard compute SLA, there are other network services that you may be utilizing. Here are just a few examples of network services you could be utilizing which would impact overall application availability.

Express Route – 99.95%
VPN Gateway – 99.9% through 99.95%
Load Balancer – 99.99%
Traffic Manager – 99.99%
Elastic Load Balancer – 99.99%
Direct Connect – 99.9% – 99.99%

Building on what we have learned so far, let’s take a look at the availability of an application that is deployed across two availability zones.

99.99% compute availability

99.99% load balancer availability

.9999 * .9999 = .9998

99.98% availability = ~9 minutes downtime per month

Now that we have addressed compute and network availability, let’s move on to storage.

Storage Availability

Now here is where the story gets a little hairy. Have a look at the following storage SLAs

https://azure.microsoft.com/en-us/support/legal/sla/storage/v1_5/

https://cloud.google.com/storage/sla

https://aws.amazon.com/compute/sla/

It seems pretty clear that Azure and Google are giving you a 99.9% SLA on block storage solutions. AWS doesn’t mention EBS specifically here. They only talk about VMs and measure their single instance VMs availability by the hour instead of by the month as the other cloud providers do. For sake of discussion, lets use the 99.9% availability guarantee that both Azure and GCP have published.

Building upon our previous example, let’s add some storage to the equation.

99.99% compute availability

99.99% load balancer availability

99.9% managed disk

.9999 * .9999 * .999 = .9988

99.88% availability = ~53 minutes of downtime per month.

53 minutes of downtime is a lot more than the 9 minutes of downtime we calculated in our previous example. What can we do to minimize the impact of the 99.9% storage availability? We have to build more redundancy in the storage!

Fortunately, we usually include storage redundancy when planning for application availability. For instance, when we stand up web servers, each web server will typically store data on the locally attached disk. When deploying domain controllers, Microsoft Active Directory takes care of replicating AD information across all the domain controllers. In the case of something like SQL Server, we leverage things Always On Availability Groups or SIOS DataKeeper to keep the data in sync across locally attached disks.

The more copies of the data we have distributed across different availability zones, the more likely we will be able to survive a failure.

For example, an application that stores its data across two different disks in different availability zones will benefit from the redundancy and instead of 99.9% availability it is more likely to achieve 99.9999% availability of the storage.

1 – (.001 * .001) = .999999

If we throw that into the previous equation the picture starts to look a little brighter.

.9999 * .9999 * .999999 = .9998

99.98% availability = ~9 minutes of downtime

By duplicating the data across multiple AZs, and therefore multiple disks, we have effectively mitigated the downtime associated with cloud storage.

Application and Dependent Services Availability

You’ve done all you can do to ensure compute, network, and storage availability. But what about the application itself? Some applications can scale out and provide redundancy by load balancing between multiple instances of the same application. Think of your typical web server farm where you may typically load balance web requests between five servers. If you lose one server the load balancer simply removes it from it’s rotation until it is once again responsive.

Other applications require a little more care and monitoring. Take SQL Server for instance. Typically Always On Availability Groups or Failover Cluster Instances are used to monitor database availability and take recovery actions should a database become unresponsive due to application or system level failures. While there is no published SLA for SQL Server availability solutions, it is commonly accepted that when configured properly for high availability, a SQL Server can provide 99.99% availability.

You may rely on other cloud based services, like hosted Active Directory, hosted DNS, microservices, or even the availability of the cloud portal itself should all be factored into your overall availability equation.

Summary

Application availability is the sum of all the moving parts. Skimping in just one area can exponentially impact the overall availability of your application. Take your time and investigate all the links in your availability chain for weakness including compute, network, storage, application and dependent services.

In general the numbers presented here are hopefully worst case scenarios and your actual availability should exceed the published SLAs. Do your homework and be wary of any service that can not guarantee 99.99% availability, the typical threshold of what is considered highly available.

Human error and security were not addressed in this article. You can make your application as highly available as possible, but if you have not taken steps to secure your application against external threats and stupid human mistakes then all bets are off when it comes to availability.

Calculating Application Availability in the Cloud

Step-by-Step: iSCSI Target Server Cluster in Azure

I recently helped someone build an iSCSI target server cluster in Azure and realized that I never wrote a step-by-step guide for that particular configuration. So to remedy that, here are the step-by-step instructions in case you need to do this yourself.

Pre-requisites

I’m going to assume you are fairly familiar with Azure and Windows Server, so I’m going to spare you some of the details. Let’s assume you have at least done the following as a pre-requisite

  • Provision two servers (SQL1, SQL2) each in a different Availability Zone (Availability Set is also possible, but Availability Zones have a better SLA)
  • Assign static IP addresses to them through the Azure portal
  • Joined the servers to an existing domain
  • Enabled the Failover Clustering feature and the iSCSI Target Server feature on both nodes
  • Add three Azure Premium Disk to each node.
    NOTE: this is optional, one disk is the minimum required. For increased IOPS we are going to stripe three Premium Azure Disks together in a storage pool and create a simple (RAID 0) virtual disk
  • SIOS DataKeeper is going to be used to provided the replicated storage used in the cluster. If you need DataKeeper you can request a trial here.

Create local Storage Pool

Once again, this step is completely optional, but for increased IOPS we are going to stripe together three Azure Premium Disks into a single Storage Pool. You might be tempted to use Dynamic Disk and a spanned volume instead, but don’t do that! If you use dynamic disks you will find out that there is some general incompatibility that will prevent you from creating iSCSI targets later.

Don’t worry, creating a local Storage Pool is pretty straight forward if you are aware of the pitfalls you might encounter as described below. The official documentation can be found here.

Pitfall #1 – although the documentation says the minimum size for a volume to be used in a storage pool is 4 GB, I found that the P1 Premium Disk (4GB) was NOT recognized. So in my lab I used 16GB P3 Premium Disks.

Pitfall #2 – you HAVE to have at least three disks to create a Storage Pool.

Pitfall #3 – create your Storage Pool before you create your cluster. If you try to do it after you create your cluster you are going to wind up with a big mess as Microsoft tries to create a clustered storage pool for you. We are NOT going to create a clustered storage pool, so avoid that mess by creating your Storage Pool before you create the cluster. If you have to add a Storage Pool after the cluster is created you will first have to evict the node from the cluster, then create the Storage Pool.

Based on the documentation found here, below are the screenshots that represent what you should see when you build your local Storage Pool on each of the two cluster nodes. Complete these steps on both servers BEFORE you build the cluster.

You should see the Primordial pool on both servers.
Right-click and choose New Storage Pool…
Choose Create a virtual disk when this wizard closes
Notice here you could create storage tiers if you decided to use a combination of Standard, Premium and Ultra SSD
For best performance use Simple storage layout (RAID 0). Don’t be concerned about reliability since Azure Managed Disks have triple redundancy on the backend. Simple is required for optimal performance.
For performance purposes use Fixed provisioning. You are already paying for the full Premium disk anyway, so no need not to use it all.
Now you will have a 45 GB X drive on your first node. Repeat this entire process for the second node.

Create your Cluster

Now that each server each have their own 45 GB X drive, we are going to create the basic cluster. Creating a cluster in Azure is best done via Powershell so that we can specify a static IP address. If you do it through the GUI you will soon realize that Azure assigns your cluster IP a duplicate IP address that you will have to clean up, so don’t do that!

Here is an example Powershell code to create a new cluster.

 New-Cluster -Name mycluster -NoStorage -StaticAddress 10.0.0.100 -Node sql1, sql2

The output will look something like this.

PS C:\Users\dave.DATAKEEPER> New-Cluster -Name mycluster -NoStorage -StaticAddress 10.0.0.100 -Node sql1, sql2
WARNING: There were issues while creating the clustered role that may prevent it from starting. For more information view the report file below.
WARNING: Report file location: C:\windows\cluster\Reports\Create Cluster Wizard mycluster on 2020.05.20 At 16.54.45.htm

Name
----
mycluster

The warning in the report will tell you that there is no witness. Because there is no shared storage in this cluster you will have to create either a Cloud Witness or a File Share Witness. I’m not going to walk you through that process as it is pretty well documented at those links.

Don’t put this off, go ahead and create the witness now before you move to the next step!

You now should have a basic 2-node cluster that looks something like this.

Configure a Load Balancer for the Cluster Core IP Address

Clusters in Azure are unique in that the Azure virtual network does not support gratuitous ARP. Don’t worry if you don’t know what that means, all you have to really know is that cluster IP addresses can’t be reached directly. Instead, you have to use an Azure Load Balancer, which redirects the client connection to the active cluster node.

There are two steps to getting a load balancer configured for a cluster in Azure. The first step is to create the load balancer. The second step is to update the cluster IP address so that it listens for the load balancer’s health probe and uses a 255.255.255.255 subnet mask which enables you to avoid IP address conflicts with the ILB.

We will first create a load balancer for the cluster core IP address. Later we will edit the load balancer to also address the iSCSI cluster resource IP address that we will be created at the end of this document.

Step 1 – Create a Standard Load Balancer

Notice that the static IP address we are using is the same address that we used to create the core cluster IP resource.

Once the load balancer is created you will edit the load balancer as shown below

Add the two cluster nodes to the backend pool
Add a health probe. In this example we use 59999 as the port. Remember that port, we will need it in the next step.
Create a new rue to redirect all HA ports, Make sure Floating IP is enabled.

Step 2 – Edit to cluster core IP address to work with the load balancer

As I mentioned earlier, there are two steps to getting the load balancer configured to work properly. Now that we have a load balancer, we have to run a Powershell script on one of the cluster nodes. The following is an example script that needs to be run on one of the cluster nodes.

$ClusterNetworkName = “Cluster Network 1”
$IPResourceName = “Cluster IP Address”
$ILBIP = “10.0.0.100”
Import-Module FailoverClusters
Get-ClusterResource $IPResourceName | Set-ClusterParameter -Multiple @{Address=$ILBIP;ProbePort=59998;SubnetMask="255.255.255.255";Network=$ClusterNetworkName;EnableDhcp=0}

The important thing about the script above, besides getting all the variables correct for your environment, is making sure the ProbePort is set to the same port you defined in your load balancer settings for this particular IP address. You will see later that we will create a 2nd health probe for the iSCSI cluster IP resource that will use a different port. The other important thing is making sure you leave the subnet set at 255.255.255.255. It may look wrong, but that is what it needs to be set to.

After you run it the output should look like this.

 PS C:\Users\dave.DATAKEEPER> $ClusterNetworkName = “Cluster Network 1”
$IPResourceName = “Cluster IP Address”
$ILBIP = “10.0.0.100”
Import-Module FailoverClusters
Get-ClusterResource $IPResourceName | Set-ClusterParameter -Multiple @{Address=$ILBIP;ProbePort=59999;SubnetMask="255.255.255.255";Network=$ClusterNetworkName;EnableDhcp=0}
WARNING: The properties were stored, but not all changes will take effect until Cluster IP Address is taken offline and then online again.

You will need to take the core cluster IP resource offline and bring it back online again before it will function properly with the load balancer.

Assuming you did everything right in creating your load balancer, your Server Manager on both servers should list your cluster as Online as shown below.

Check Server Manager on both cluster nodes. Your cluster should show as “Online” under Manageability.

Install DataKeeper

I won’t go through all the steps here, but basically at this point you are ready to install SIOS DataKeeper on both cluster nodes. It’s a pretty simple setup, just run the setup and choose all the defaults. If you run into any problems with DataKeeper it is usually one of two things. The first issue is the service account. You need to make sure the account you are using to run the DataKeeper service is in the Local Administrators Group on each node.

The second issue is in regards to firewalls. Although the DataKeeper install will update the local Windows Firewall automatically, if your network is locked down you will need to make sure the cluster nodes can communicate with each other across the required DataKeeper ports. In addition, you need to make sure the ILB health probe can reach your servers.

Once DataKeeper is installed you are ready to create your first DataKeeper job. Complete the following steps for each volume you want to replicate using the DataKeeper interface

Use the DataKeeper interface to connect to both servers
Click on create new job and give it a name
Click Yes to register the DataKeeper volume in the cluster
Once the volume is registered it will appear in Available Storage in Failover CLuster Manager

Create the iSCSI target server cluster

In this next step we will create the iSCSI target server role in our cluster. In an ideal world I would have a Powershell script that does all this for you, but for sake of time for now I’m just going to show you how to do it through the GUI. If you happen to write the Powershell code please feel free to share with the rest of us!

There is one problem with the GUI method. ou will wind up with a duplicate IP address in when the IP Resource is created, which will cause your cluster resource to fail until we fix it. I’ll walk through that process as well.

Go to the Properties of the failed IP Address resource and choose Static IP and select an IP address that is not in use on your network. Remember this address, we will use it in our next step when we update the load balancer.

You should now be able to bring the iSCSI cluster resource online.

Update load balancer for iSCSI target server cluster resource

Like I mentioned earlier, clients can’t connect directly to the cluster IP address (10.0.0.110) we just created for the iSCSI target server cluster. We will have to update the load balancer we created earlier as shown below.

Start by adding a new frontend IP address that uses the same IP address that the iSCSI Target cluster IP resource uses.
Add a second health probe on a different port. Remember this port number, we will use it again in the powershell script we run next
We add one more load balancing rule. Make sure to change the Frontend IP address and Health probe to use the ones we just created. Also make sure direct server return is enabled.

The final step to allow the load balancer to work is to run the following Powershell script on one of the cluster nodes. Make sure you use the new Healthprobe port, IP address and IP Resource name.

 $ClusterNetworkName = “Cluster Network 1”
$IPResourceName = “IP Address 10.0.0.0”
$ILBIP = “10.0.0.110”
Import-Module FailoverClusters
Get-ClusterResource $IPResourceName | Set-ClusterParameter -Multiple @{Address=$ILBIP;ProbePort=59998;SubnetMask="255.255.255.255";Network=$ClusterNetworkName;EnableDhcp=0}

Your output should look like this.

 PS C:\Users\dave.DATAKEEPER> $ClusterNetworkName = “Cluster Network 1”
$IPResourceName = “IP Address 10.0.0.0”
$ILBIP = “10.0.0.110”
Import-Module FailoverClusters
Get-ClusterResource $IPResourceName | Set-ClusterParameter -Multiple @{Address=$ILBIP;ProbePort=59998;SubnetMask="255.255.255.255";Network=$ClusterNetworkName;EnableDhcp=0}
WARNING: The properties were stored, but not all changes will take effect until IP Address 10.0.0.0 is taken offline and then online again.

Make sure to take the resource offline and online for the settings to take effect.

Create your clustered iSCSI targets

Before you begin, it is best to check to make sure Server Manager from BOTH servers can see the two cluster nodes, plus the two cluster name resources, and they both appear “Online” under manageability as shown below.

If either server has an issue querying either of those cluster names then the next steps will fail. If there is a problem I would double check all the steps you took to create the load balancer and the Powershell scripts you ran.

We are now ready to create our first clustered iSCSI targets. From either of the cluster nodes, follows the steps illustrated below as an example on how to create iSCSI targets.

Of course assign this to whichever server or servers will be connecting to this iSSI target.

And there you have it, you now have a functioning iSCSI target server in Azure.

If you build this leave a comment and me know how you plan to use it!

Step-by-Step: iSCSI Target Server Cluster in Azure

Major Cloud Outage impacts Google Compute Engine – Were you prepared?

Google first reported an “Issue” on Jun 2, 2019 at 12:25 PDT. As is now common in any type of disaster, reports of this outage first appeared on social media. It seems now the most reliable place to get any type of information early in a disaster is social media.

Twitter is quickly becoming the first source of information on anything from revolutions, natural disasters to cloud outages.

Many services that rely on Google Compute Engine were impacted. With three teenage kids at home, I first knew something was up when all three kids emerged from their caves, aka, bedrooms, at the same time with a worried look on their faces. Snapchat, Youtube and Discord were all offline!

They must have thought that surely this was the first sign of the apocalypse. I reassured them that this was not the beginning of the new dark ages and that maybe they should go outside and do some yard work instead. That scared them back to reality and they quickly scurried away to find something else to occupy their time.

All kidding aside, there were many services being reported as down, or only available in certain areas. The dust is still settling on the cause, breadth and scope of the outage, but it certainly seems that the outage was pretty significant in size and scope, impacting many customers and services including Gmail and other G-Suite services, Vimeo and more.

Many services were impacted by this outage, Gmail, YouTube and SnapChat just to name a few.

While we wait for the official root cause analysis on this latest Google Compute Engine outage, Google reported “high levels of network congestion in the eastern USA” caused the downtime. We will have to wait to see what they determine caused the network issues. Was it human error, cyber-attack, hardware failure, or something else?

Were you prepared?

As I wrote during the last major cloud outage, if you are running business critical workloads in the cloud, regardless of the cloud service provider, it is incumbent upon you to plan for the inevitable outage. The multi-day Azure outage of Sept 4th, 2018 was related to a failure of the secondary HVAC system to kick in during a power surge related to an electrical storm. While the failure was just within a single datacenter, the outage exposed multiple services that had dependencies on this single datacenter, making that datacenter itself a single point of failure.

Leveraging the cloud’s infrastructure, you can minimize your risks by continuously replicating critical data between Availability Zones, Regions or even cloud service providers. In addition to data protection, having a procedure in place to rapidly recover business critical applications is an essential part of any disaster recovery plan. There are various replication and recovery options available, from services provided by the cloud vendor themselves like Azure Site Recovery, to application specific solutions like SQL Server Always On Availability Groups, to third party solutions like SIOS DataKeeper that protect a wide range of applications running on both Windows and Linux.

Having a disaster recovery strategy that is wholly dependent on a single cloud provider leaves you susceptible to a scenario that might impact multiple regions within a single cloud. Multi-datacenter or multi-region disasters are not likely. However, as we saw with this recent outage and the Azure outage last fall, even if a failure is local to a single datacenter, the impact can be wide reaching across multiple datacenters or even regions within a cloud. To minimize your risks, may want to consider a multi-cloud or hybrid cloud scenario where your disaster recovery site resides outside of your primary cloud platform.

The cloud is just as susceptible to outages as your own datacenter. You must take steps to prepare for disasters. I suggest you start by looking at your most business critical apps first. What would you do if they were offline and the cloud portal to manage them was not even available? Could you recover? Would you meet your RTO and RPO objectives? If not, maybe it is time to re-evaluate your DR strategy.

“By failing to prepare, you are preparing to fail.”

Benjamin Franklin

Major Cloud Outage impacts Google Compute Engine – Were you prepared?

Storage Considerations for Running SQL Server in Azure

If you are deploying SQL Server in Azure, or any Cloud platform for that matter, instead of just provisioning storage like you did for your on-premises deployments for many years, you may consider that storage in the Azure isn’t exactly like the storage you may have had access to on-premises. Some traditional “best practices” may wind up costing you additional money and give you less than optimal performance, all while not providing you any of the intended benefits. Much of what I am about to discuss is also described in Performance Guidelines for Azure in SQL Server Virtual Machines.

Disk Types

I’m not here to tell you that you must use UltraSSD, Premium Storage, or any other disk type. You just need to be aware that you have options, and what each disk type brings to the table. Of course, like anything else in the cloud, the more money you spend, the more power, speed, throughput, etc., you will achieve. The trick is finding the optimal configuration so that you spend just enough to achieve the desired results.

Size DOES Matters

Like many things in the cloud, certain specs are tied together. For servers if you want more RAM you often get more CPU, even if you didn’t NEED more CPU. For storage, IOPS, throughput and size are all tied together. If you want more IOPS, you need a bigger disk. If you need more space, you also get more IOPS. Of course you can jump between storage classes to circumvent that to some extent, but it still holds true that if you need more IOPS, you also get more space on any of the different storage types.

The size of your virtual machine instance also matters. Regardless of what storage configuration you eventually go with, the overall throughput will be capped at whatever the instance size allows. So once again, you may need to pay for more RAM and CPU than you need, just to achieve your desired storage performance. Make sure you understand what your instance size can support in terms of max IOPS and MBps throughput. Many times the instance size will turn out to be the bottleneck in a perceived storage performance problem in Azure.

Use RAID 0

RAID 0 is traditionally the 3rd rail of storage configuration options. Although it provides the best combination of performance and storage utilization of any RAID option, it does so at the risk of a catastrophic failure. If just a single disk in a RAID 0 stripe set should fail, the entire stripe set fails. So traditionally RAID 0 is only used in scenarios where data loss is acceptable and high performance is desirable.

However, in Azure software RAID 0 is desirable and even recommended in many situations. How can we get away with RAID 0 in Azure? The answer is easy. Each disk you present to an Azure virtual machine instance already has triple redundancy on the backend, meaning you would need to have multiple failures before you would lose your stripe set. By using RAID 0, you can combine multiple disks and the overall performance of the combined stripe set will increase by 100% for each additional disk you add to the stripe set.

So for example, if you had a requirement of 10,000 IOPS, you might think that you need UltraSSD since Premium Storage maxes out at 7,500 IOPS with a P50. However, if you put two P50s in a RAID 0, you now have the potential to achieve up to 15,000 IOPS, assuming you are running a Standard_F16s_v2 or similarly large instance size that supports that many IOPS.

In Windows 2012 and later, RAID 0 is achieved by creating a Simple Storage Space. In Windows Server 2008 R2 you can use Dynamic Disks to create a RAID 0 Striped Volume. Just a word of caution, if you are going to use a local Storage Space and also configure Availability Groups or a SANless Failover Cluster Instance with DataKeeper, it is best to configure your storage BEFORE you create a cluster.

Just a reminder, you only have about two more months to move your SQL Server 2008 R2 instances to Azure. Check out my post on how to deploy a SQL Server 2008 R2 FCI on Azure to ensure high availability.

Don’t bother separating log and data files

Traditionally log and data files would reside on different physical disks. Log files tend to have a lot of write activity and data files tend to have more read activity, so sometimes storage would be optimized based on those characteristics. It was also desirable to keep log and data files on different disks for recovery purposes. If you should lose one or the other, with a proper backup strategy in place you could recover your database with no data loss.

With cloud based storage, the likelihood of losing just a single volume is EXTREMELY low. If by chance you lose storage, it is likely your entire storage cluster, along with the triple redundancy, went to lunch. So while it may feel right to put logs in E:\ logs and data in F:\data, you really are doing yourself a disservice. For example, if you provision a P20 for logs and a P20 for data, each volume will be 512 GiB in size and capped at 2,300 IOPS. And just think, you may not need all that size for log files, but it might not give you much room to grow for your data files, which will eventually require moving to a more expensive P30 just for the extra space.

Wouldn’t it be much nicer to simply stripe those two volumes together into a nice large 1 TB volume that supports 4,600 IOPS? By doing that both the log and data files can take advantage of the increased IOPS and you have also just optimized your storage utilization and decreased your cloud storage cost by putting off the move to a P30 disk for your data file.

The same holds true files and filegroups. Really think hard about what you are doing and whether it still makes sense once you move to the cloud.  What makes sense might be counter intuitive to what you have done in the past. When in doubt, follow the KISS rule, Keep It Simple Stupid! The beauty of the cloud is you can always add more storage, increase instance size, or do whatever it takes to optimize performance vs. cost.

What to do about TempDB

Use the local SSD, aka, the D: drive. The D drive is going to be the best location for your tempdb. Because it is a local drive the data is considered “temporary”, meaning it can be lost if a server is moved, rebooted, etc. That’s okay, tempdb is recreated each time SQL starts anyway. The local SSD is going to be fast and have low latency, but because it is local the reads and writes to it do not contribute to the overall storage IOPS limit of the instance size, so effectively it is FREE IOPS, so why not take advantage? If you are building a SANless SQL Server FCI with SIOS DataKeeper, be sure to create a non-mirrored volume resource of the D drive so you don’t needlessly replicate TempDB.

Mount Points Become Obsolete

Mount Points are commonly used in SQL Server FCI configurations when multiple instances of SQL Server are installed on the same Windows Cluster. This reduces the overall cost of SQL Server licenses and can help save cost by driving higher server utilization. As we discussed in the past, typically there might be five or more drives associated with each SQL Server instance. If each of those drives had to consume a drive letter you would run out of letters in just about three to four instances. So instead of giving each drive a letter, mount points were used so that each instance could just be serviced by a single drive letter, the root drive. The root drive has mount points that map to separate physical disks that don’t have drive letters.

However, as we discussed above, the concept of using a bunch of individual disks really doesn’t make a lot of sense in the cloud, hence mount points become obsolete in the cloud. Instead, create a RAID 0 stripe we as described and each clustered instance SQL Server will simply have its own individual volume that is optimised for space, performance and cost. This solves the problem of running out of drive letters and gives you much better storage utilization and performance while also reducing the cost of your cloud storage.

Conclusions

This post is meant as a jumping off point, not a definitive guide. The main point of the post is to get you thinking differently about cloud and storage as it pertains to running SQL Server. Don’t simply take what you did on-premise and recreate it in the cloud, that will almost always result in less than optimal performance and a much larger storage bill than necessary.

Storage Considerations for Running SQL Server in Azure

STEP-BY-STEP: HOW TO CONFIGURE A SQL SERVER 2008 R2 FAILOVER CLUSTER INSTANCE ON WINDOWS SERVER 2008 R2 IN AZURE OR AZURE STACK

Intro

On July 9, 2019, support for SQL Server 2008 and 2008 R2 will end. That means the end of regular security updates. However, if you move those SQL Server instances to Azure or Azure Stack (I will simply refer to both as Azure for the rest of the guide), Microsoft will give you three years of Extended Security Updates at no additional charge. If you are currently running SQL Server 2008/2008 R2 and you are unable to update to a later version of SQL Server before the July 9th deadline, you will want to take advantage of this offer rather than running the risk of facing a future security vulnerability. An unpatched instance of SQL Server could lead to data loss, downtime or a devastating data breach.

One of the challenges you will face when running SQL Server 2008/2008 R2 in Azure is ensuring high availability. On premises you may be running a SQL Server Failover Cluster (FCI) instance for high availability, or possibly you are running SQL Server in a virtual machine and are relying on VMware HA or a Hyper-V cluster for availability. When moving to Azure, none of those options are available. Downtime in Azure is a very real possibility that you must take steps to mitigate.

In order to mitigate the possibility of downtime and qualify for Azure’s 99.95% or 99.99% SLA, you have to leverage SIOS DataKeeper. DataKeeper overcomes Azure’s lack of shared storage and allows you to build a SQL Server FCI in Azure that leverages the locally attached storage on each instance. SIOS DataKeeper not only supports SQL Server 2008 R2 and Windows Server 2008 R2 as documented in this guide, it supports any version of Windows Server, from 2008 R2 through Windows Server 2019 and any version of SQL Server from from SQL Server 2008 through SQL Server 2019.

This guide will walk through the process of creating a two-node SQL Server 2008 R2 Failover Cluster Instance (FCI) in Azure, running on Windows Server 2008 R2. Although SIOS DataKeeper also supports clusters that span Availability Zones or Regions, this guide assumes each node resides in the same Azure Region, but different Fault Domains. SIOS DataKeeper will be used in place of the shared storage normally required to create a SQL Server 2008 R2 FCI.

Pre-Requisites

Active Directory
This guide assumes you have an existing Active Directory Domain. You can manage your own Domain Controllers or use Azure Active Directory Domain Services. For this tutorial we will connect to a domain called contoso.local. Of course you will connect to your own domain when following this tutorial.

Open Firewall Ports
– SQL Server:1433 for Default Instance
– Load Balancer Health Probe: 59999
– DataKeeper: these firewall rules are added to the Windows host based firewall automatically during installation. For details on which ports are opened consult the SIOS documentation.
– Keep in mind, if you have any network based security in place that blocks ports between the cluster nodes you will need to account for these ports there as well.

DataKeeper Service Account
Create a Domain account. We will specify this account when we install DataKeeper. This account will need to be added to the Local Administrators group on each node of the cluster.

Create the first SQL Server Instance in Azure

This guide will leverage the SQL Server 2008R2SP3 on Windows Server 2008R2 image that is published in the Azure Marketplace.

When you provision the first instance you will have to create a new Availability Set. During this process be sure to increase the number of Fault Domains to 3. This allows the two cluster nodes and the file share witness each to reside in their own Fault Domain.

If you don’t already have a virtual network configured, allow the creation wizard to create a new one for you.

Once the instance is created, go in to the IP configurations and make the Private IP address static. This is required for SIOS DataKeeper and is best practice for clustered instances.

Make sure that your virtual network is configured to set the DNS server to be a local Windows AD controller to ensure you will be able to join the domain in a later step.

After the virtual machines are provisioned, add at least two additional disks to each instance. Premium or Ultra SSD are recommended. Disable caching on the disks used for the SQL log files. Enable read-only caching on the disk used for the SQL data files. Refer to Performance guidelines for SQL Server in Azure Virtual Machines for additional information on storage best practices.

Create the 2nd SQL Server Instance in Azure

Follow the same steps as above, except be sure to place this instance in the same virtual network and Availability Set that you created with the 1st instance.

Create a File Share Witness (FSW) Instance

In order for the Windows Server Failover Cluster (WSFC) to work optimally you are required to create another Windows Server instance and place it in the same Availability Set as the SQL Server instances. By placing it in the same Availability Set you ensure that each cluster node and the FSW reside in different Fault Domains, ensuring your cluster stays on line should an entire Fault Domain go off line. This instances does not require SQL Server, it can be a simple Windows Server as all it needs to do is host a simple file share.

This instance will host the file share witness required by WSFC. This instance does not need to be the same size, nor does it require any additional disks to be attached. It’s only purpose is to host a simple file share. It can in fact be used for other purposes. In my lab environment my FSW is also my domain controller.

Uninstall SQL Server 2008 R2

Each of the two SQL Server instances provisioned already have SQL Server 2008 R2 installed on them. However, they are installed as standalone SQL Server instances, not clustered instances. SQL Server must be uninstalled from each of these instances before we can install the cluster instance. The easiest way to do that is to run the SQL Setup as shown below.

When you run setup.exe /Action-RunDiscovery you will see everything that is preinstalled

setup.exe /Action=RunDiscovery

Running setup.exe /Action=Uninstall /FEATURES=SQL,AS,RS,IS,Tools /INSTANCENAME=MSSQLSERVER kicks off the uninstall process

setup.exe /Action=Uninstall /FEATURES=SQL,AS,RS,IS,Tools /INSTANCENAME=MSSQLSERVER

Running setup.exe /Action-RunDiscovery confirms the uninstallation completed

setup.exe /Action-RunDiscovery

Run this uninstallation process again on the 2nd instance.

Add instances to the Domain

All three of these instances will need to be added to a Windows Domain. As mentioned in the Prerequisites section, you must have access to join an existing Windows Active Directory. In our case, we are joining a domain called contoso.local.

Add Windows Failover Clustering Feature

The Failover Clustering Feature needs to be added to the two SQL Server instances

Add-WindowsFeature Failover-Clustering

Install Convenience Rollup Update for Windows Server 2008 R2 SP1

There is a critical update ( kb2854082) that is required in order to configure a Windows Server 2008 R2 instance in Azure. That update and many more are included in the Convenience Rollup Update for Windows Server 2008 R2 SP1. Install this update on each of the two SQL Server instances.

Format the Storage

The additional disks that were attached when the two SQL Server instances were provisioned need to be formatted. Do the following for each volume on each instance.

Microsoft best practices says the following…

“NTFS allocation unit size: When formatting the data disk, it is recommended that you use a 64-KB allocation unit size for data and log files as well as TempDB.”

Run Cluster Validation

Run cluster validation to ensure everything is ready to be clustered.

Import-Module FailoverClusters
Test-Cluster -Node "SQL1", "SQL2"

Your report will contain WARNINGS about Storage and Networking. You can ignore those warnings as we know there are no shared disks and only a single network connection exists between the servers. You may also receive a warning about network binding order which can also be ignored. If you encounter any ERRORS you must address those before you continue.

Since there are no “Potential Cluster DIsks” available, the first test throws a warning and all the subsequent disks test are skipped. This is expected since we will be using just local disks replicated with SIOS DataKeeper.
The Validate Network Communication tests warn about just a single network being available between cluster nodes. You can ignore this warning since the network redundancy is handled at the virtual layer by Azure.

Error trying to run Cluster Validation?

I have encountered this error on a few occasions and I’m still trying to sort out under what conditions this occurs. Occasionally you will find that test-cluster fails to run as described in the forum post.

Test-Cluster
Unable to Validate a Cluster Configuration. The operation has failed. The action validate a configuration did not complete
There is an error in XML document (5, 73).

Attempt by method

Microsoft.Xml.Serialzation.GeneratedAssembly.XmlSerialzationReaderClusterPrep.Config.Read4_As...Bolean) to access method

MS.Internal.ServerClusters.Validation.TestAssemblyCollection.Add(MS.Internal.ServerClusters.V....Failed

If this happens to you, I have found the following fix recommended in the forum post works for me.

Inside C:\Windows\System32\WindowsPowerShell\v1.0 make a copy of powershell_ise.exe.config file (make a copy inside C:\Windows\System32\WindowsPowerShell\v1.0)- rename it to powershell.exe.config

Open it with notepad- delete current config line and paste:
<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <system.xml.serialization>
    <xmlSerializer useLegacySerializerGeneration="true"/>
  </system.xml.serialization>
</configuration>
- save and run test-cluster

While this fix will allow you to run test-cluster from Powershell, I have found that running Validate through the GUI still throws an error, even with this fix. I have a query in to Microsoft to see if they have a solution, but for now if you need to run cluster Validation you may have to use Test-Cluster in Powershell.

Create the Cluster

Best practices for creating a cluster in Azure would be to use Powershell to create a cluster, specifying a static IP address. Powershell allows us to specify a Static IP Address, whereas the GUI method does not. Unfortunately, Azure’s implementation of DHCP does not work well with WSFC, so if you use the GUI method you will wind up with a duplicate IP address as the Cluster IP Address that will need to be fixed before the cluster is usable.

However, what I have found is that the typical New-Cluster powershell command with the -StaticAddress command doesn’t work. To avoid the problem of the duplicate IP address, we have to resort to the cluster.exe utility and run the following command.

cluster /cluster:cluster1 /create /nodes:"sql1 sql2" /ipaddress:10.0.0.100/255.255.255.0

Add the File Share Witness

Next we need to add the File Share Witness. On the 3rd server we provisioned as the FSW, create a folder and share it as shown below. You will need to grant the Cluster Name Object (CNO) read/write permissions at both the Share and Security levels as shown below.

Once the share is created, run the Configure Cluster Quorum wizard on one of the cluster nodes and follow the steps illustrated below.

Install DataKeeper

Install DataKeeper on each of the two SQL Server cluster nodes as shown below.

This is where we will specify the Domain account we added to each of the local Domain Administrators group.

Configure DataKeeper

Once DataKeeper is installed on each of the two cluster nodes you are ready to configure DataKeeper.

NOTE – The most common error encountered in the following steps is security related, most often by pre-existing Azure Security groups blocking required ports. Please refer to the SIOS documentation to ensure the servers can communicate over the required ports.

First you must connect to each of the two nodes.

If everything is configured properly, you should then see the following in the Server Overview report.

Next, create a New Job and follow the steps illustrated below

Choose Yes here to register the DataKeeper Volume resource in Available Storage

Complete the above steps for each of the volumes. Once you are finished, you should see the following in the WSFC UI.

You are now ready to install SQL Server into the cluster.

NOTE – At this point the replicated volume is only accessible on the node that is currently hosting Available Storage. That is expected, so don’t worry!

Install SQL Server on the first node

If you want to script the installation, I have included the example below of a scripted cluster installation of SQL Server 2008 R2 into the first node of cluster. The script to add a node to existing cluster is found further down in the guide.

Of course adjust for your environment.

c:\SQLServerFull\setup.exe /q /ACTION=InstallFailoverCluster /FEATURES=SQL /INSTANCENAME="MSSQLSERVER" /INSTANCEDIR="C:\Program Files\Microsoft SQL Server" /INSTALLSHAREDDIR="C:\Program Files\Microsoft SQL Server" /SQLSVCACCOUNT="contoso\admin" /SQLSVCPASSWORD="xxxxxxxxx" /AGTSVCACCOUNT="contoso\admin" /AGTSVCPASSWORD="xxxxxxxxx" /SQLDOMAINGROUP="contoso\SQLAdmins" /AGTDOMAINGROUP="contoso\SQLAdmins" /SQLCOLLATION="SQL_Latin1_General_CP1_CI_AS" /FAILOVERCLUSTERGROUP="SQL Server 2008 R2 Group" /FAILOVERCLUSTERDISKS="DataKeeper Volume E" "DataKeeper Volume F" /FAILOVERCLUSTERIPADDRESSES="IPv4;10.0.0.101;Cluster Network 1;255.255.255.0" /FAILOVERCLUSTERNETWORKNAME="SQL2008Cluster" /SQLSYSADMINACCOUNTS="contoso\admin" /SQLUSERDBLOGDIR="E:\MSSQL10.MSSQLSERVER\MSSQL\Log" /SQLTEMPDBLOGDIR="F:\MSSQL10.MSSQLSERVER\MSSQL\Log" /INSTALLSQLDATADIR="F:\MSSQL10.MSSQLSERVER\MSSQLSERVER" /IAcceptSQLServerLicenseTerms

If you prefer to use the GUI, just follow along with the screenshots below.

On the first node, run the SQL Server setup.

Choose New SQL Server Failover Cluster Installation and follow the steps as illustrated.

Choose only the options you need.

Please note, this document assumes you are using the Default instance of SQL Server. If you use a Named Instance you need to make sure you lock down the port that it listens on, and use that port later on when you configure the load balancer. You also will need to create a load balancer rule for the SQL Server Browser Service (UDP 1434) in order to connect to a Named Instance. Neither of those two requirements are covered in this guide, but if you require a Named Instance it will work if you do those two additional steps.

Here you will need to specify an unused IP address

Go to the Data Directories tab and relocate data and log files. At the end of this guide we talk about relocating tempdb to a non-mirrored DataKeeper Volume for optimal performance. For now, just keep it on one of the clustered disks.

Install SQL Server on the second node

Below is an example of the command you can run to add an additional SQL Server 2008 R2 node into an existing cluster.

c:\SQLServerFull\setup.exe /q /ACTION=AddNode /INSTANCENAME="MSSQLSERVER" /SQLSVCACCOUNT="contoso\admin" /SQLSVCPASSWORD="xxxxxxxxx" /AGTSVCACCOUNT="contoso\admin" /AGTSVCPASSWORD="xxxxxxxx" /IAcceptSQLServerLicenseTerms

If you prefer using the GUI, follow along with the following screenshots.

Run the SQL Server setup again on the second node and choose Add node to a SQL Server Failover Cluster.

Congratulations, you are almost done! However, due to Azure’s lack of support for gratuitous ARP, we will need to configure an Internal Load Balancer (ILB) to assist with client redirection as shown in the following steps.

Update the SQL Cluster IP Address

In order for the ILB to function properly, you must run run the following command from one of the cluster nodes. It SQL Cluster IP enables the SQL Cluster IP address to respond to the ILB health probe while also setting the subnet mask to 255.255.255.255 in order to avoid IP address conflicts with the health probe.

cluster res <IPResourceName> /priv enabledhcp=0 address=<ILBIP> probeport=59999  subnetmask=255.255.255.255

NOTE – I don’t know if it is a fluke, but on occasion I have run this command and it looks like it runs, but it doesn’t complete the job and I have to run it again. The way I can tell if it worked is by looking at the Subnet Mask of the SQL Server IP Resource, if it is not 255.255.255.255 then you know it didn’t run successfully.  It may simple be a GUI refresh issue, so you can also try restarting the cluster GUI to verify the subnet mask was updated.

After it runs successfully, take the resource offline and bring it back online for the changes to take effect.

Create the Load Balancer

The final step is to create the load balancer. In this case we are assuming you are running the Default Instance of SQL Server, listening on port 1433.

The Private IP Address you define when you Create the load balancer will be the exact same address your SQL Server FCI uses.

Add just the two SQL Server instances to the backend pool. Do NOT add the FSW to the backend pool.

In this load balancing rule you must enable Floating IP

Validate the Cluster

Before you continue, run cluster validation one more time. The Cluster Validation report should return just the same network and storage warnings that it did the first time you ran it. Assuming there are no new errors or warnings, your cluster is configured correctly.

Edit sqlserv.exe Config File

In directory C:\Program Files (x86)\Microsoft SQL Server\100\Tools\Binn we created a sqlps.exe.config file and sqlservr.exe.config with the following lines in the config file:

<configuration>
  <startup>
    <supportedRuntime version="v2.0.50727"/>
  </startup>
</configuration>

These files, by default, will not exist and may be created. If this file(s) already exists for your installation, the <supportedRuntime version=”v2.0.50727″/> line simply needs to be placed with the <startup>…</startup> sub-section of the <configuration>…</configuration> section. This should be done on both servers.

Test the Cluster

The most simple test is to open SQL Server Management Studio on the passive node and connect to the cluster. If you are able to connect, congratulations, you did everything correct! If you can’t connect don’t fear, you wouldn’t be the first person to make a mistake. I wrote a blog article to help troubleshoot the issue. Managing the cluster is exactly the same as managing a traditional shared storage cluster. Everything is controlled through Failover Cluster Manager.

Optional – Relocate Tempdb

For optimal performance it would be advisable to move tempdb to the local, non replicated, SSD. However, SQL Server 2008 R2 requires tempdb to be on a clustered disk. SIOS has a solution called a Non-Mirrored Volume Resource which addresses this issue. It would be advisable to create a non-mirrored volume resource of the local SSD drive and move tempdb there. However, the local SSD drive is non-persistent, so you must take care to ensure the folder holding tempdb and the permissions on that folder are recreated each time the server reboots.

After you create the Non-Mirrored Volume Resource of the local SSD, follow the steps in this article to relocate tempdb. The startup script described in that article must be added to each cluster node.

For More Information

As always, if you have questions or comments you can leave them in the comment section below or reach me on Twitter @daveberm

STEP-BY-STEP: HOW TO CONFIGURE A SQL SERVER 2008 R2 FAILOVER CLUSTER INSTANCE ON WINDOWS SERVER 2008 R2 IN AZURE OR AZURE STACK
